iBGP Peering (loopback)

Assalamualaikum Wr.Wb teman teman semua allhamdulilah pada postingan kali ini saya ingin berbagi tutorial tentang "iBGP Peering (Loopback)" langsung simak saja dibawah ini...


R1
#System identity set name=R1#interface bridge add name=loopback1
#interface bridge add name=loopback2
#routing bgp instance set default as=12 router-id=1.1.1.1
#ip address add address=1.1.1.1 interface=loopback1
#ip address add address=10.10.12.1/24 interface=ether1
#ip address add address=11.11.11.11 interface=loopback2
#ip route add distance=1 dst-addres=22.22.22.22/32 gateway=10.10.12.2
#routing bgp network add network=1.1.1.1/32
#routing bgp peer add name=peer1 remote-address=10.10.12.2 remote-as=12 update-source=loopback2

#routing bgp peer print detail

#routing bgp advertisements print

#ip route print

#ping 2.2.2.2 src address=1.1.1.1

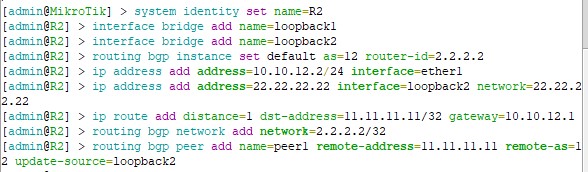

R2
#System identity set name=R2#interface bridge add name=loopback1
#interface bridge add name=loopback2
#routing bgp instance set default as=12 router-id=2.2.2.2
#ip address add address=2.2.2.2 interface=loopback1
#ip address add address=10.10.12.2/24 interface=ether1
#ip address add address=22.22.22.22 interface=loopback2 network=22.22.22.22
#ip route add distance=1 dst-addres=11.11.11.11/32 gateway=10.10.12.1
#routing bgp network add network=2.2.2.2/32
#routing bgp peer add name=peer1 remote-address=11.11.11.11 remote-as=12 update-source=loopback2

#routing bgp peer print detail

#routing bgp advertisements print

#ip route print

#ping 1.1.1.1 src address=2.2.2.2
